Right Front Subwoofer Connector
Right Front Subwoofer Connector

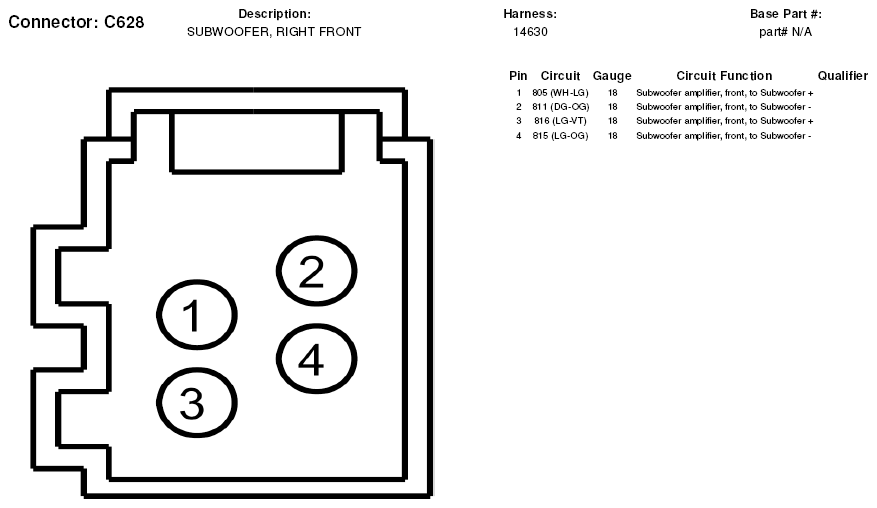

Fig 1: Right Front Subwoofer Connector End View (C628)
