Right Front Power Window Motor Connector

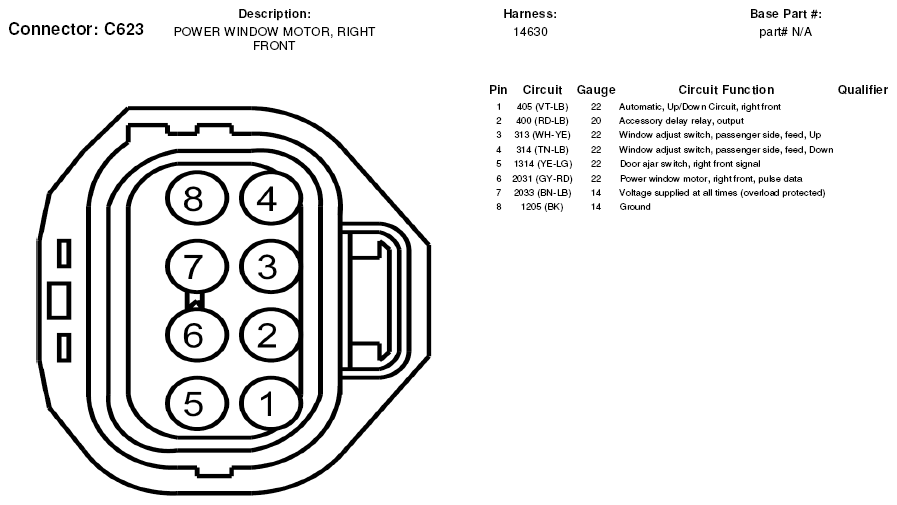

Fig 1: Right Front Power Window Motor Connector End View (C623)

G05602904
