Left Power Seat Motor Assembly Connector

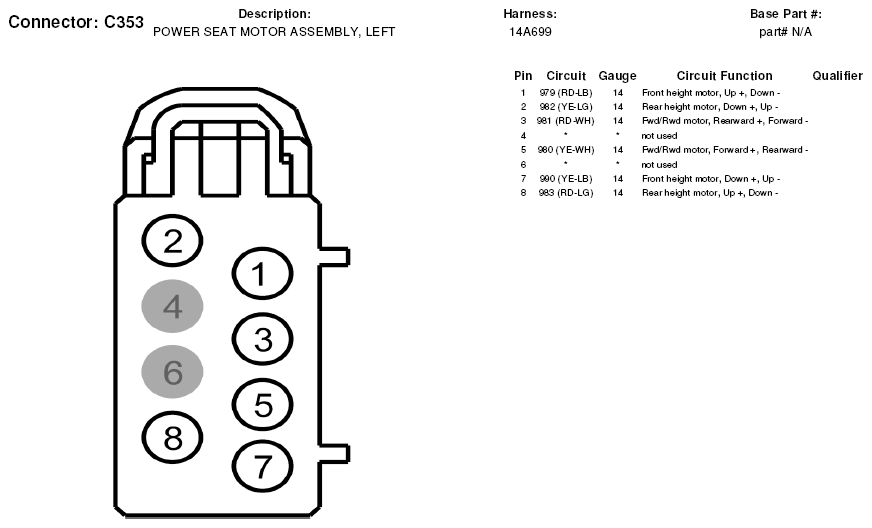

Fig 1: Left Power Seat Motor Assembly Connector End View (C353)

G05602854
