Left Front Power Window Motor Connector

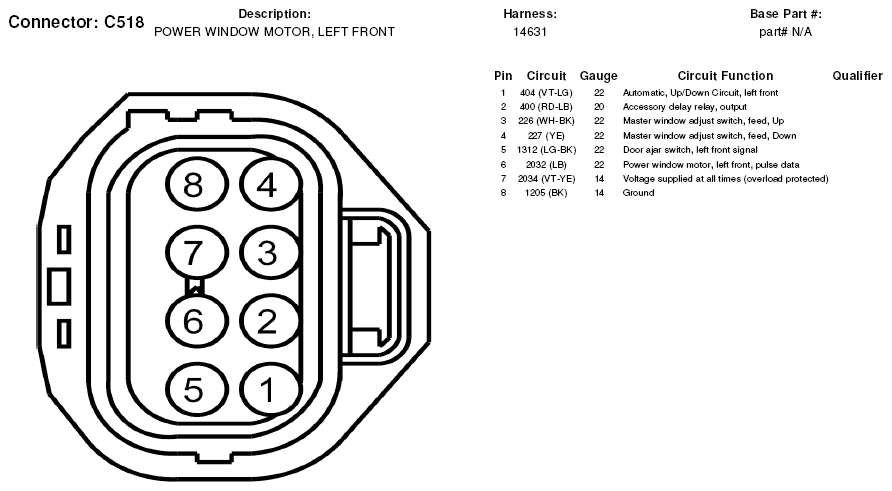

Fig 1: Left Front Power Window Motor Connector End View (C518)

G05602891
