Left Front Channel Subwoofer Amplifier Connector
Left Front Channel Subwoofer Amplifier Connector

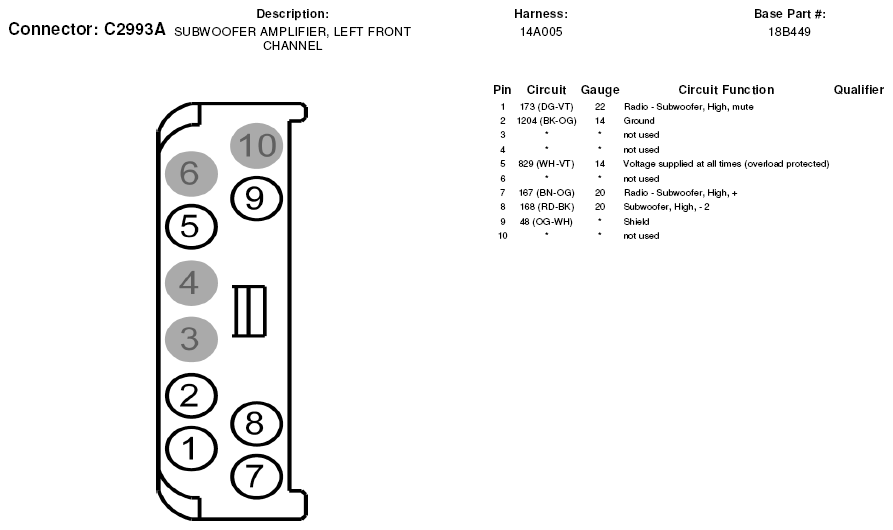

Fig 1: Left Front Channel Subwoofer Amplifier Connector End View (C2993A)

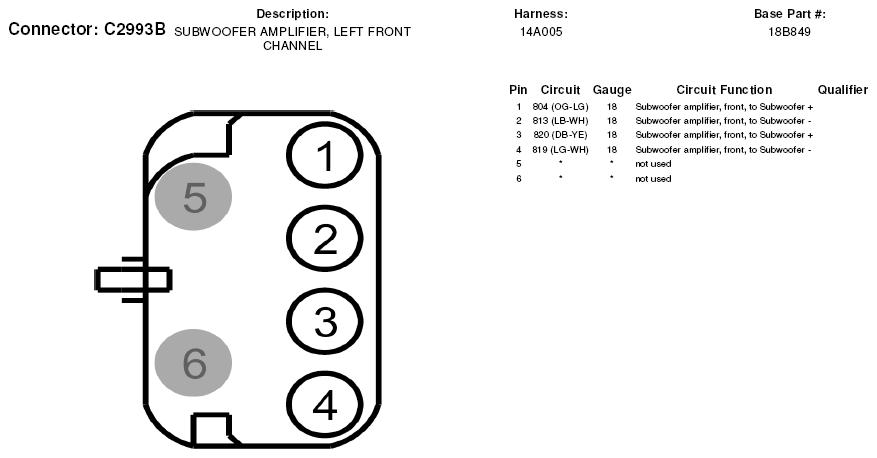

Fig 2: Left Front Channel Subwoofer Amplifier Connector End View (C2993B)
