Cylinder Head Temperature Sensor Connector
Cylinder Head Temperature Sensor Connector

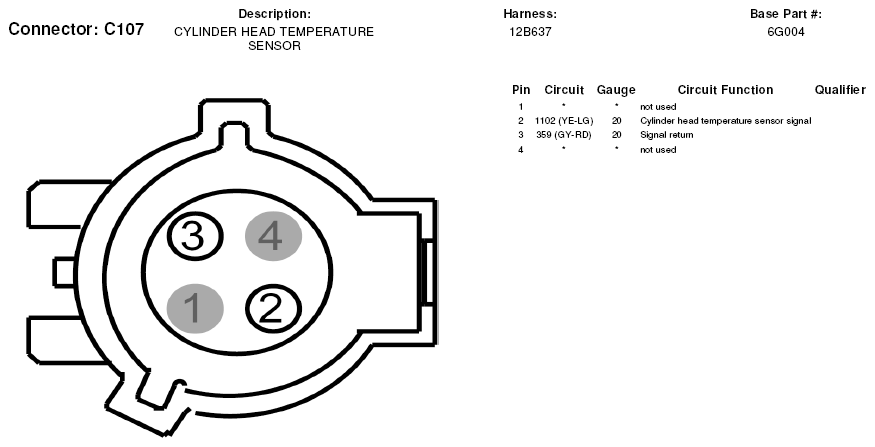

Fig 1: Cylinder Head Temperature Sensor Connector End View (C107)

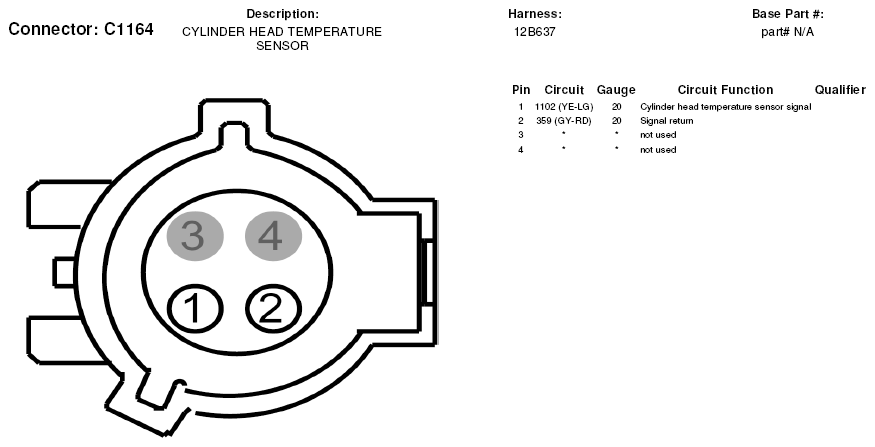

Fig 2: Cylinder Head Temperature Sensor Connector End View (C1164)
