Ambient Lighting Switch Connector

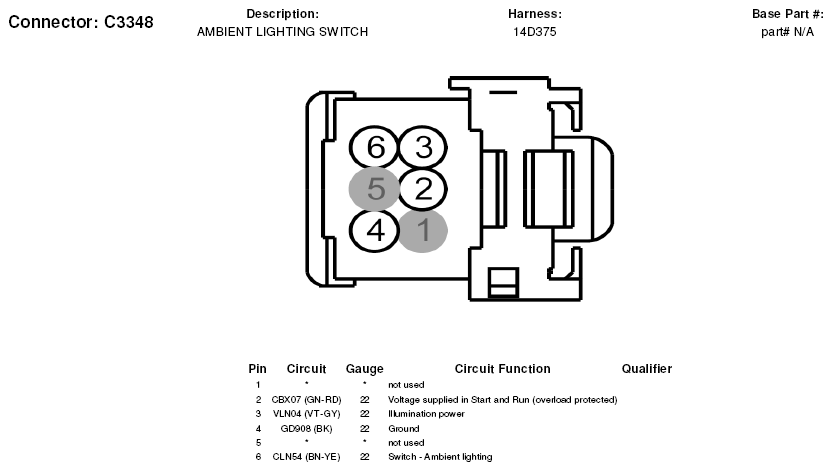

Fig 1: Ambient Lighting Switch Connector End View (C3348)

G05603002
