Passenger Side Thorax Airbag Module Connector

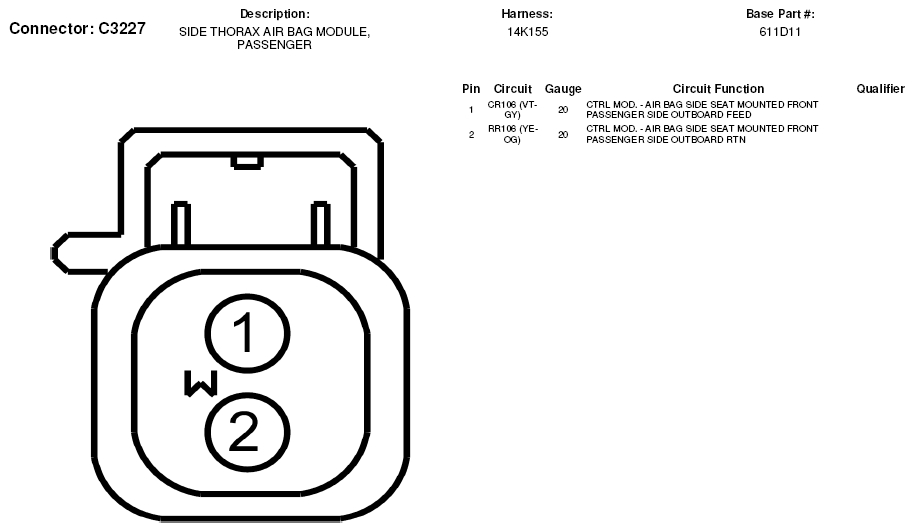

Fig 1: Passenger Side Thorax Airbag Module Connector End View (C3227)

G05602693
