Ambient Lighting Switch Connector

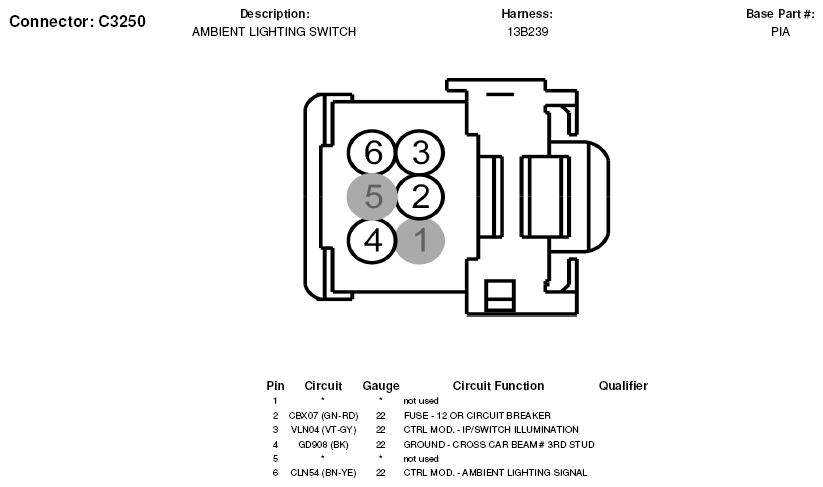

Fig 1: Ambient Lighting Switch Connector End View (C3250)

G05602696
