Master window control switch - Fusion / Milan: Schematic

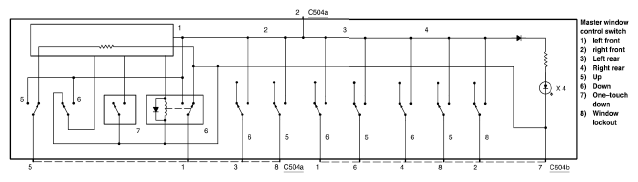

Fig 1: Master Window Control Switch - Fusion / Milan - Schematic

G05604962

Courtesy of FORD MOTOR CO.
