Rear Wiper Module Connector
Rear Wiper Module Connector

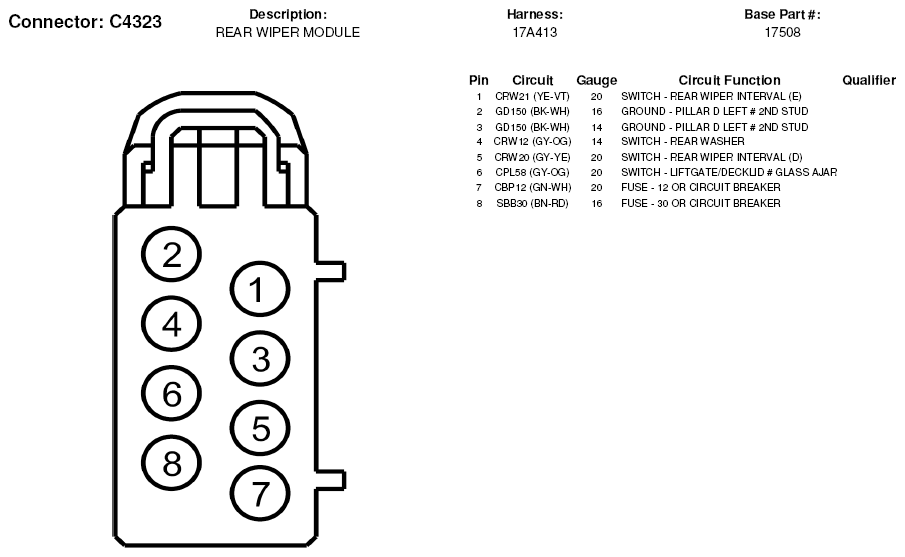

Fig 1: Rear Wiper Module Connector End View (C4323)
