Climate Control Assembly: Notes

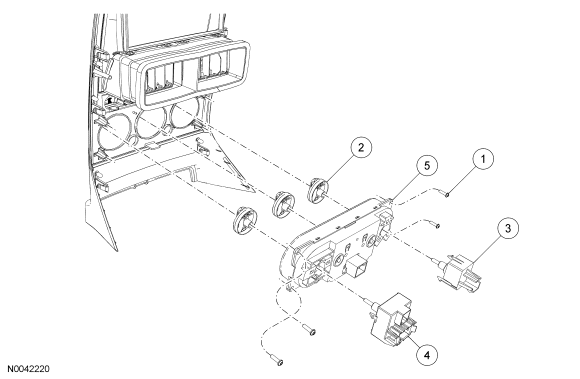

Fig 1: Exploded View Of Climate Control Assembly
GF0027898Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W701679 Climate control assembly screw (4 required)
2 18519 Climate control knob (3 required)
3 19986 Blower motor switch
4 19B888 Function selector switch
5 19980 Climate control assembly
