Windshield Wiper Motor Assembly Connector

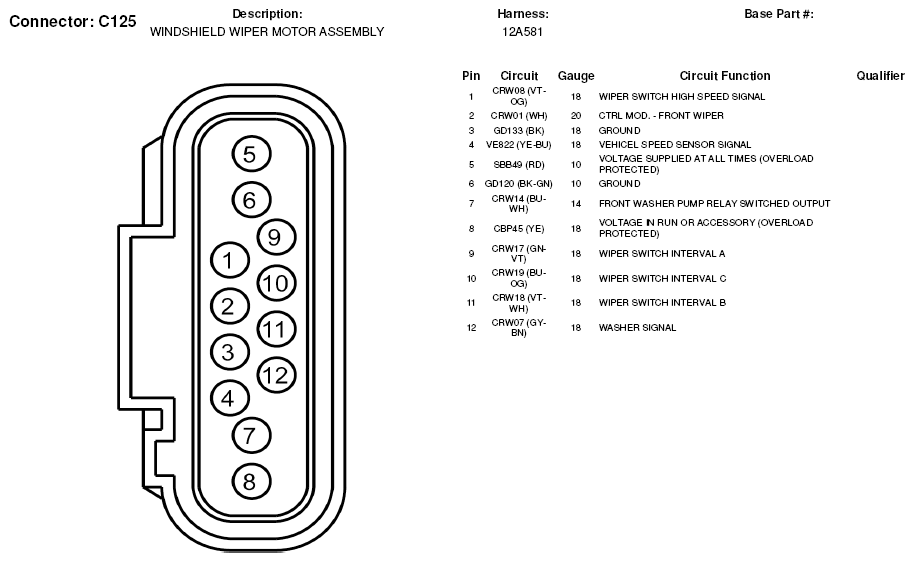

Fig 1: Windshield Wiper Motor Assembly Connector End View (C125)

G05599769
