Front Control Interface Module Connector End View (C2402)

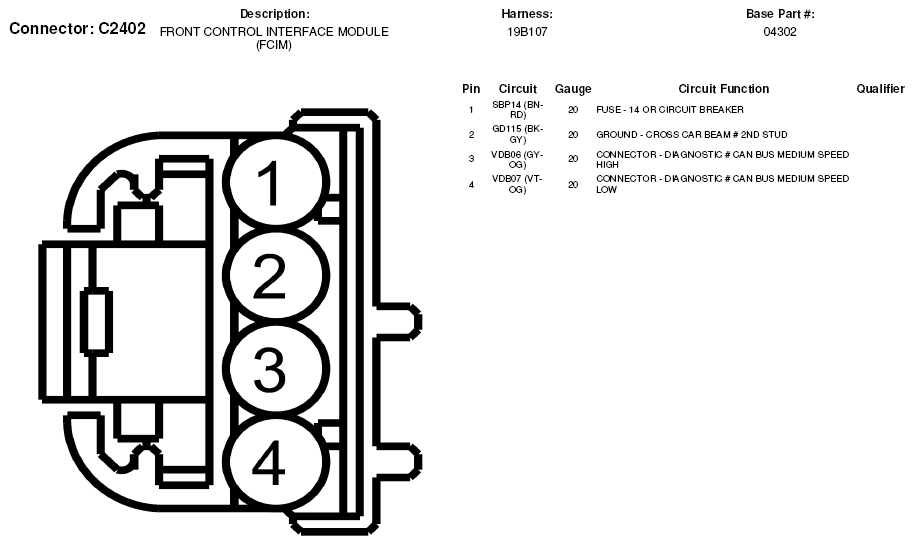

Fig 1: Front Control Interface Module Connector End View (C2402)

G05599656
