Safety Belt Buckle - Rear: Notes

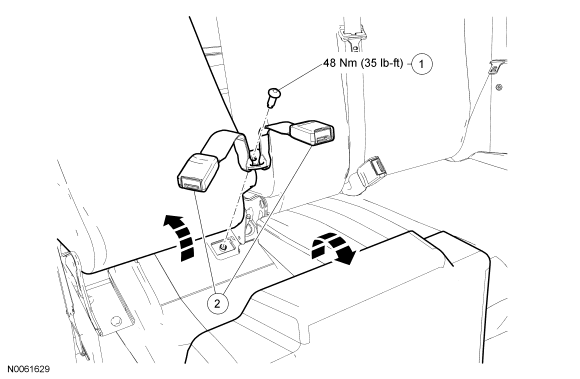

Fig 1: Exploded View Of Rear Safety Belt Buckle With Torque Specifications
GF0023921Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Rear center and RH safety belt buckle bolt (part of 60044)
2 60044 Rear center and RH safety belt buckles
