Rear Power Seat Release Switch Connector

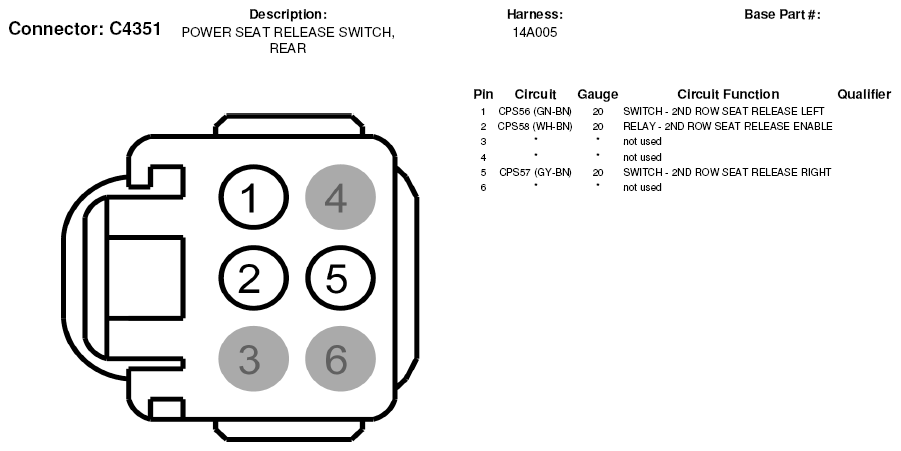

Fig 1: Rear Power Seat Release Switch Connector End View (C4351)

G05599105
