Passenger Air Bag Module Connectors

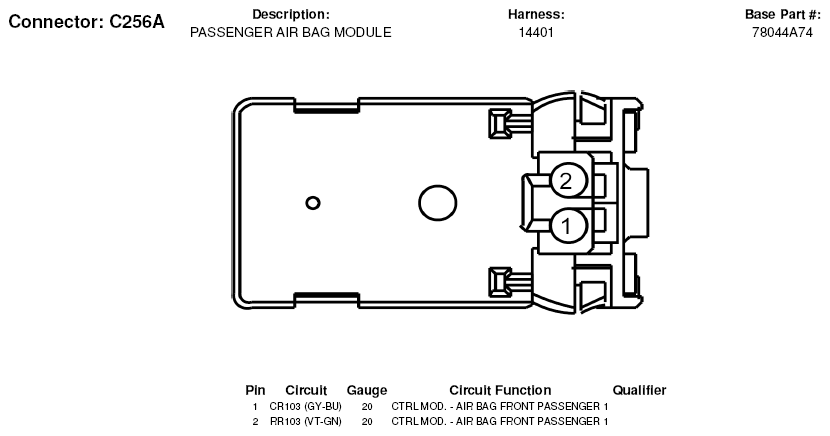

Fig 1: Passenger Air Bag Module Connector End View (C256A)

G05598852

Fig 2: Passenger Air Bag Module Connector End View (C256B)

G05598853
