Left Rear Power Window Motor Connector

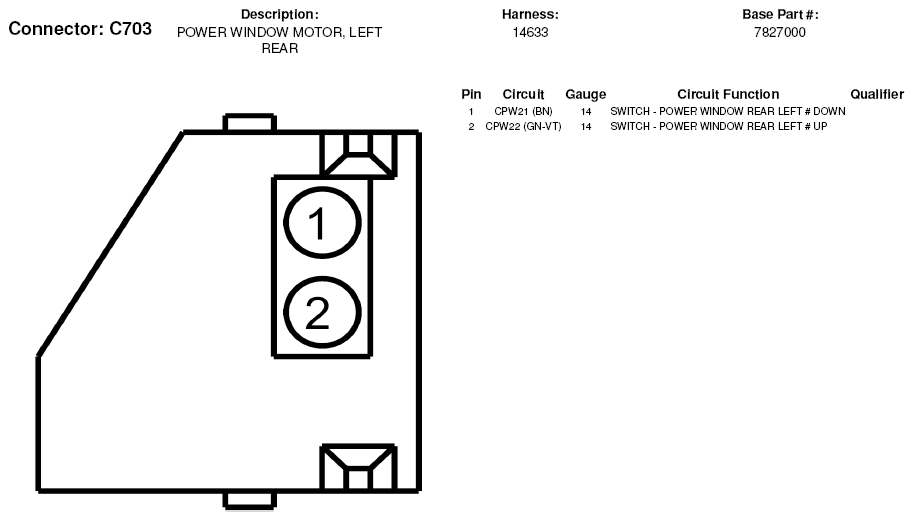

Fig 1: Left Rear Power Window Motor Connector End View (C703)

G05598944
