Right Rear Window Adjust Switch Connector

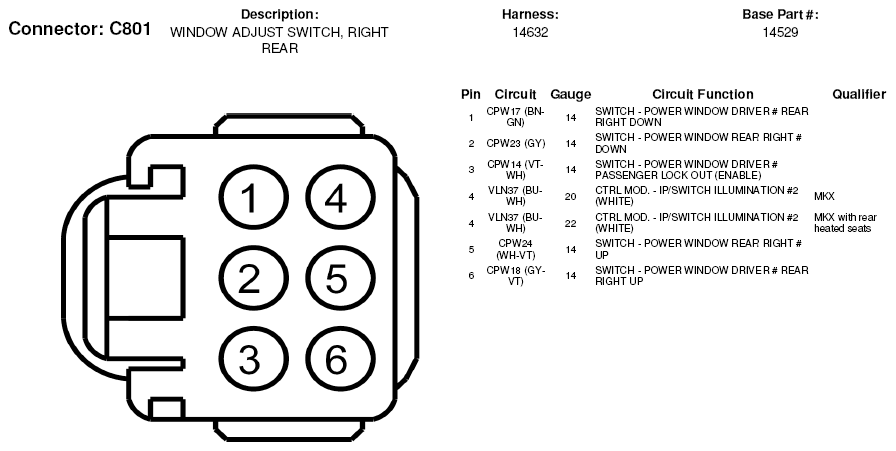

Fig 1: Right Rear Window Adjust Switch Connector End View (C801)

G05598948
