Right Rear Wheel Speed Sensor Connector

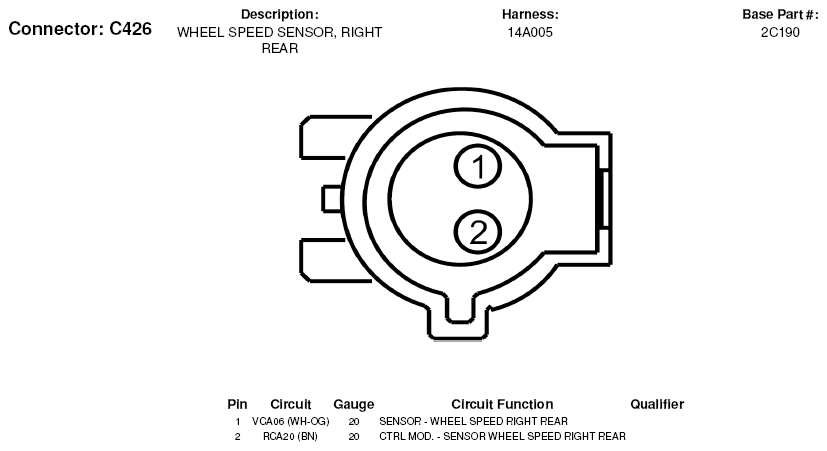

Fig 1: Right Rear Wheel Speed Sensor Connector End View (C426)

G05598896
