Left Steering Wheel Switch Connector

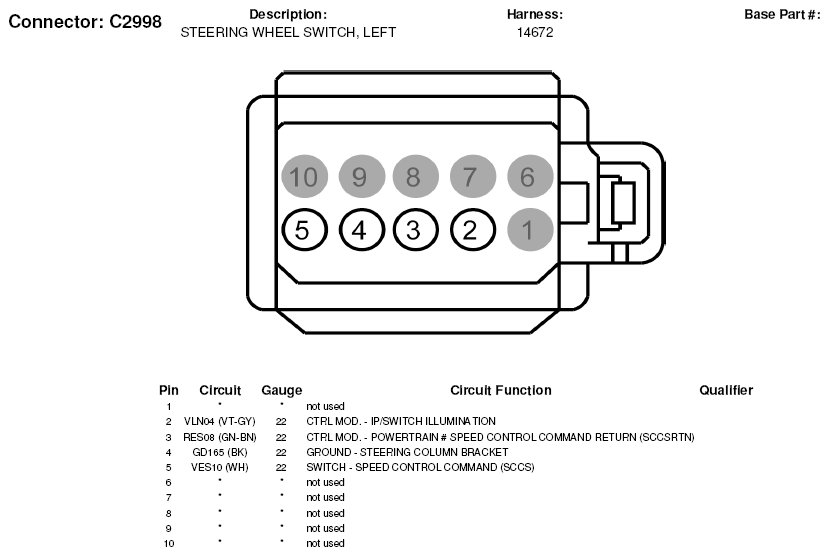

Fig 1: Left Steering Wheel Switch Connector End View (C2998)

G05599024
