Left Front Speaker Connector

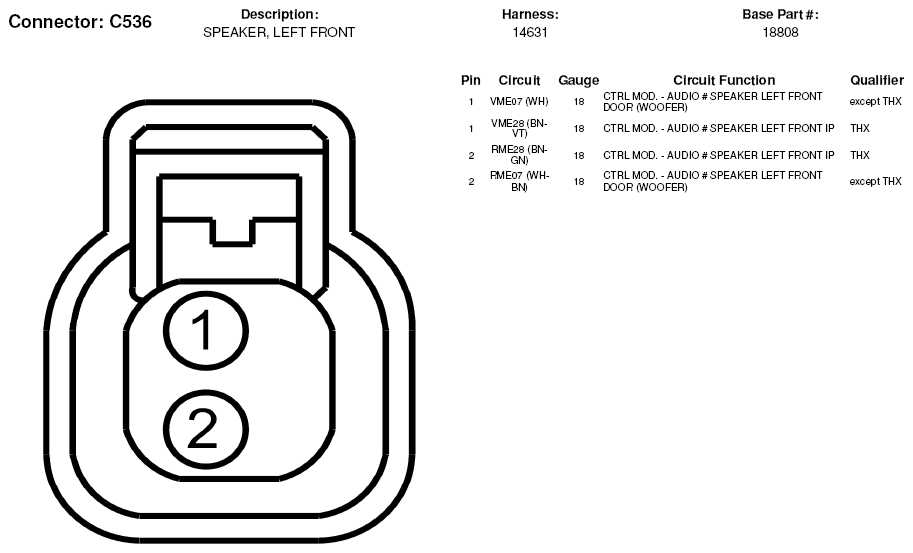

Fig 1: Left Front Speaker Connector End View (C536)

G05598923

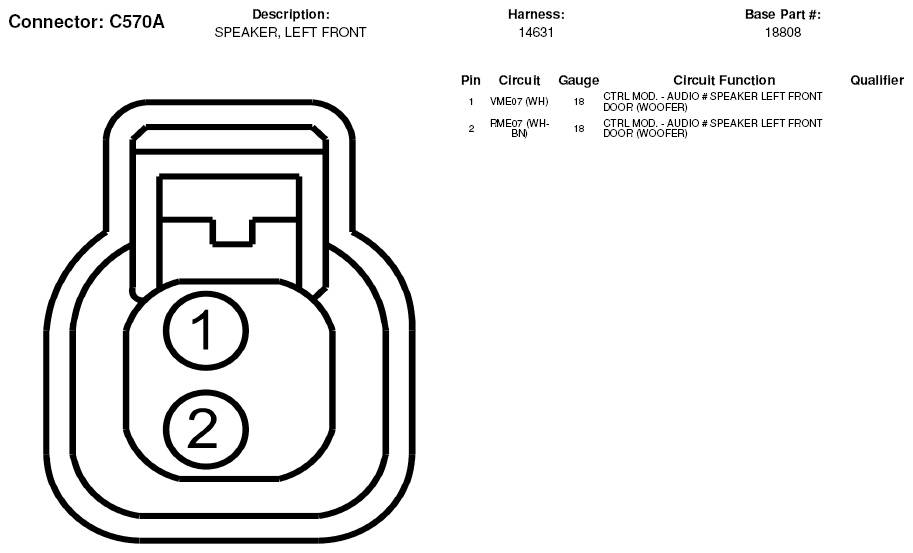

Fig 2: Left Front Speaker Connector End View (C570A)

G05598926

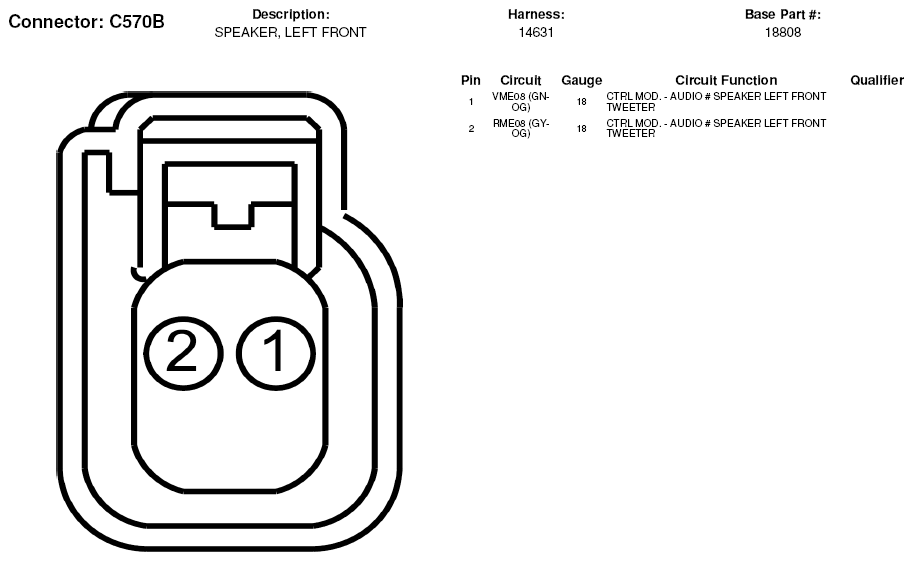

Fig 3: Left Front Speaker Connector End View (C570B)

G05598927
