Cylinder Head Temperature Sensor Connector

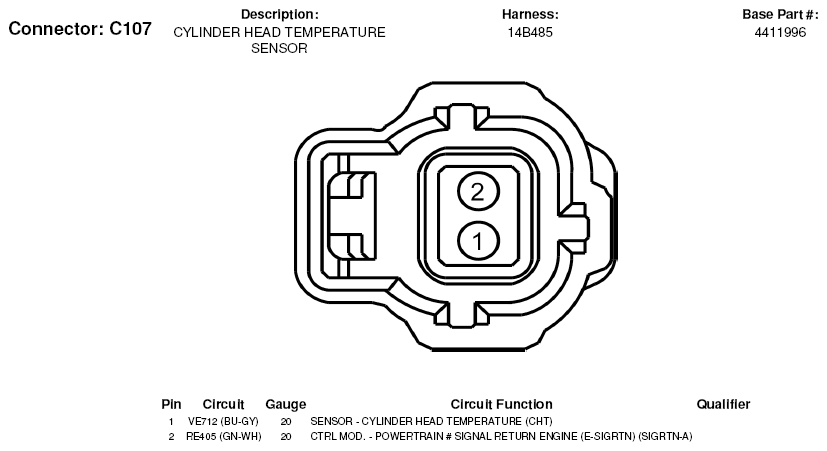

Fig 1: Cylinder Head Temperature Sensor Connector End View (C107)

G05598778
