Fuel Pump Module: Notes

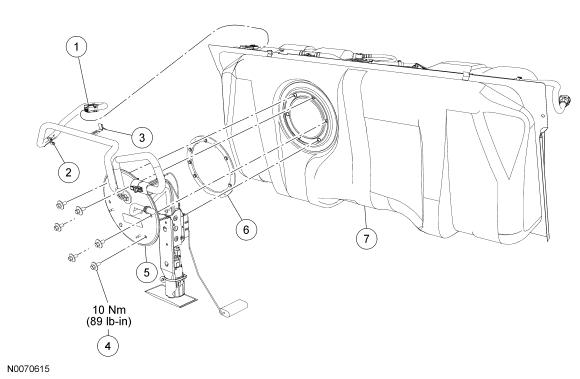

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Fuel Pump (FP) module harness-to-Fuel Tank Pressure (FTP) sensor electrical connector |
| 2 | 14A163 | FP module wiring harness retainer |
| 3 | 14A163 | FP module wiring harness retainer |
| 4 | N602725 | FP module bolt (6 required) |
| 5 | 9A407 | FP module |
| 6 | 9C379 | FP module seal |
| 7 | 9002 | Fuel tank |
