Transmission Hardware Unit Connector

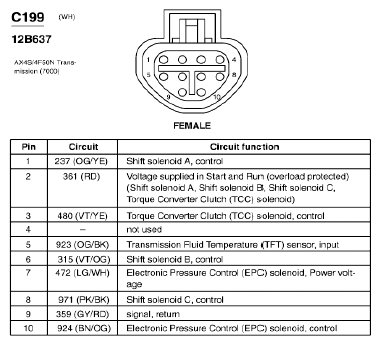

Fig 1: Transmission Hardware Unit Connector End View (C199)

G07850167

Courtesy of FORD MOTOR CO.
