Mass Air Flow (MAF) Sensor Connector

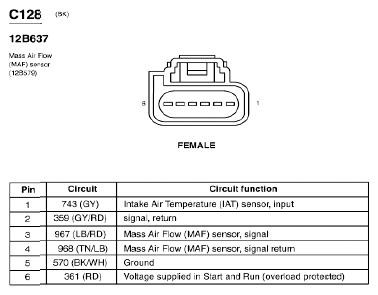

Fig 1: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07850138

Courtesy of FORD MOTOR CO.
