License Plate Lamp, Right Connector
License Plate Lamp, Right Connector

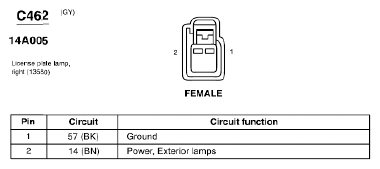

Fig 1: License Plate Lamp, Right Connector End View (C462)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
