A/C Clutch Relay Connector

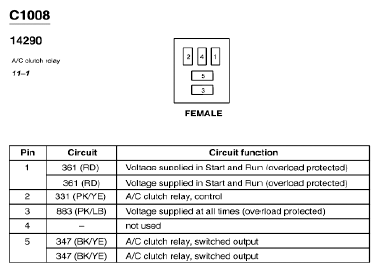

Fig 1: A/C Clutch Relay Connector End View (C1008)

G07850292

Courtesy of FORD MOTOR CO.
