Front Disc Brake Shield: Removal

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the brake disc (1125) For additional information, refer to BRAKE DISC  .
    2. CAUTION: Use extreme care not to damage the wheel knuckle when drilling out the brake disc shield rivets.
  2. Remove the brake disc shield.
    1. Using a center punch, knock the mandrels out of the rivets. Using a 5.5 mm (0.22 inch) drill bit, drill out the rivets. If a larger drill bit is needed, it must not be larger than 6 mm (0.24 inch).
    2. Remove the dust shield (2K004).

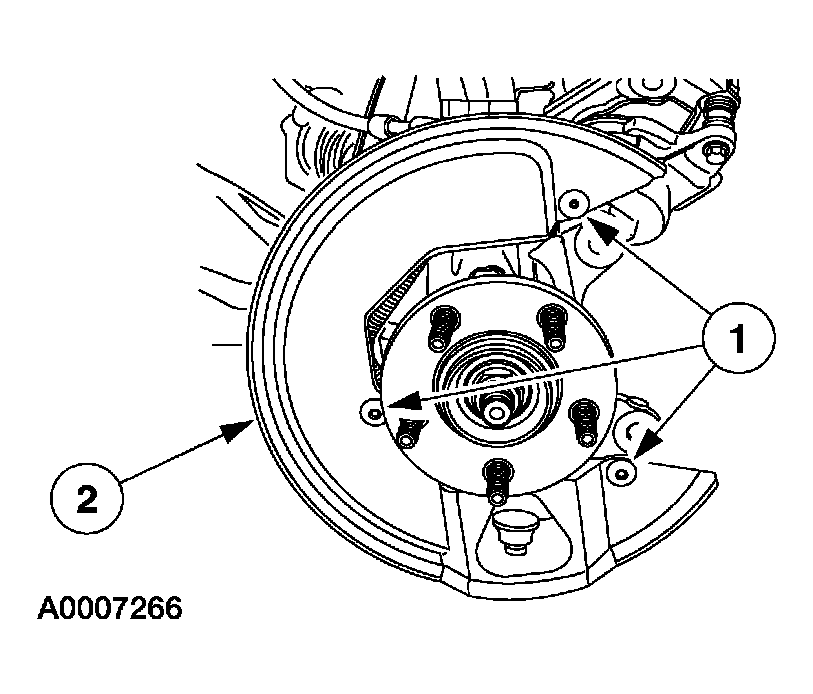

Fig 1: Removing Dust Shield
G03954501Courtesy of FORD MOTOR CO.
