Power Steering Pump - 5.4L: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Installer Set, Teflon® Seal	211-D027 (D90P-3517-A) or equivalent

Material

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

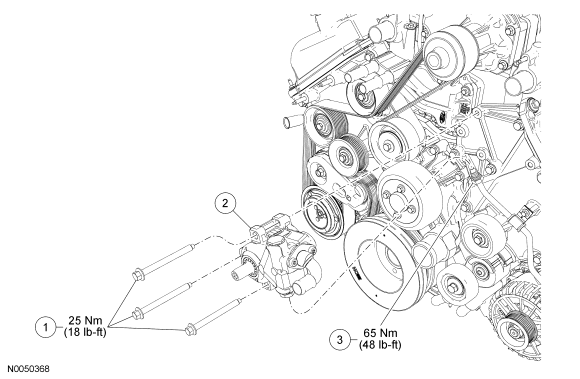

Fig 1: Exploded View Of Power Steering Pump With Torque Specifications - 5.4L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W700839	Power steering pump bolts (3 required)
2	3A674	Power steering pump
3	-	Pressure line-to-pump fitting (part of 3A719)
