Power Steering Fluid Cooler: Notes

Material

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

NOTE: 4.0L shown, 4.6L and 5.4L similar.

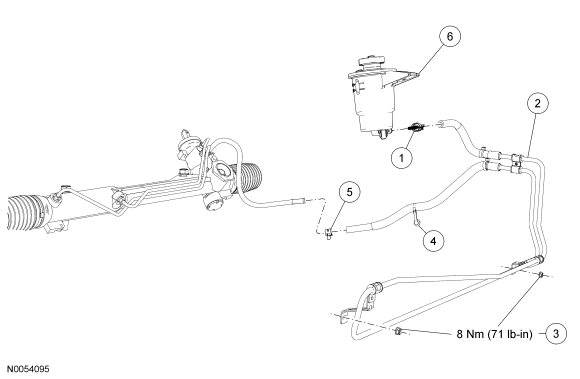

Fig 1: Exploded View Of Power Steering Fluid Cooler With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Fluid cooler-to-reservoir hose clamp (part of 3E525)
2	3D746	Power steering fluid cooler tube
3	W520101	Fluid cooler nuts (2 required)
4	-	Pin-type retainer (part of 3F780)
5	-	Return line-to-fluid cooler hose clamp (part of 3F780)
6	3A697	Power steering fluid reservoir
