Wiper Switch / Washer Switch Connector

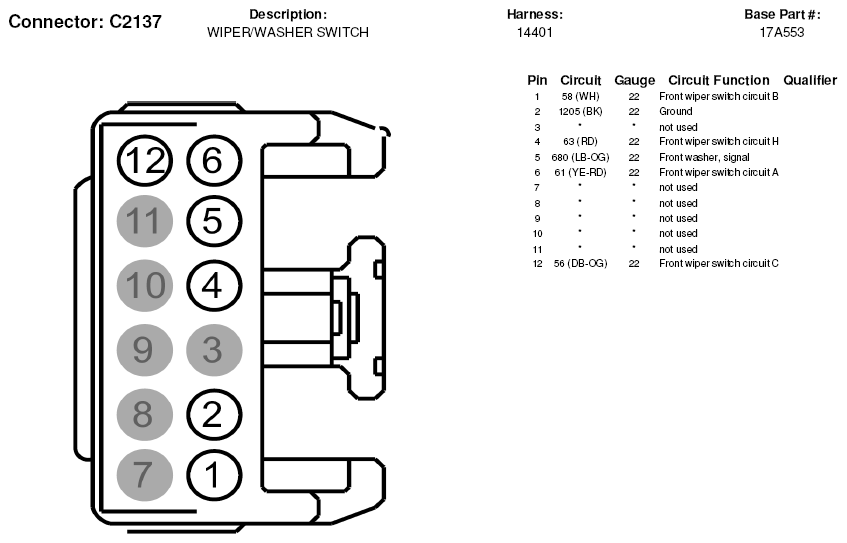

Fig 1: Wiper Switch / Washer Switch Connector End View (C2137)

G05183342

Courtesy of FORD MOTOR CO.
