Wheel Speed Sensor Connectors

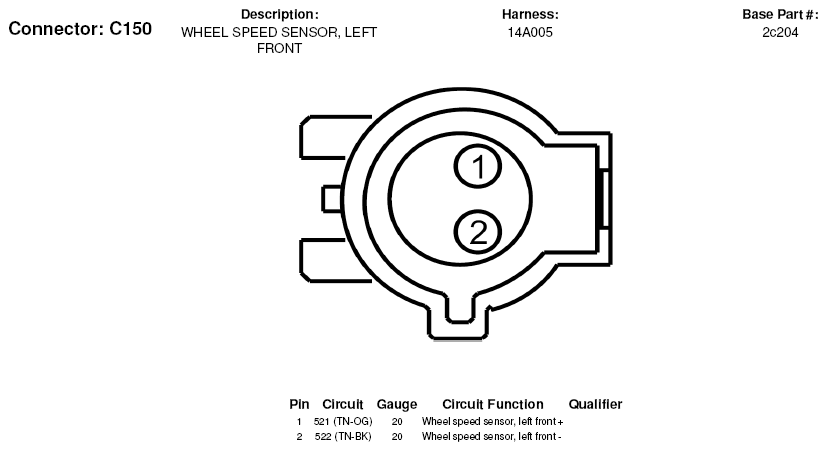

Fig 1: Wheel Speed Sensor Connector End View (C150)
G05183169Courtesy of FORD MOTOR CO.
Fig 2: Wheel Speed Sensor Connector End View (C160)
G05183172Courtesy of FORD MOTOR CO.

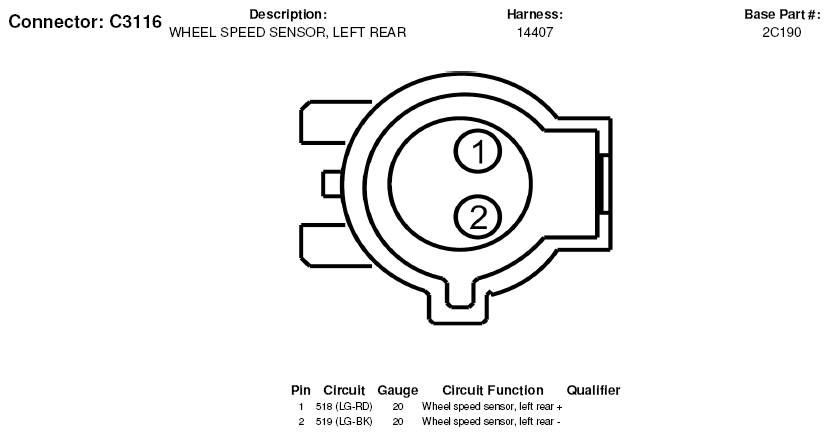

Fig 3: Wheel Speed Sensor Connector End View (C3116)
G05183368Courtesy of FORD MOTOR CO.

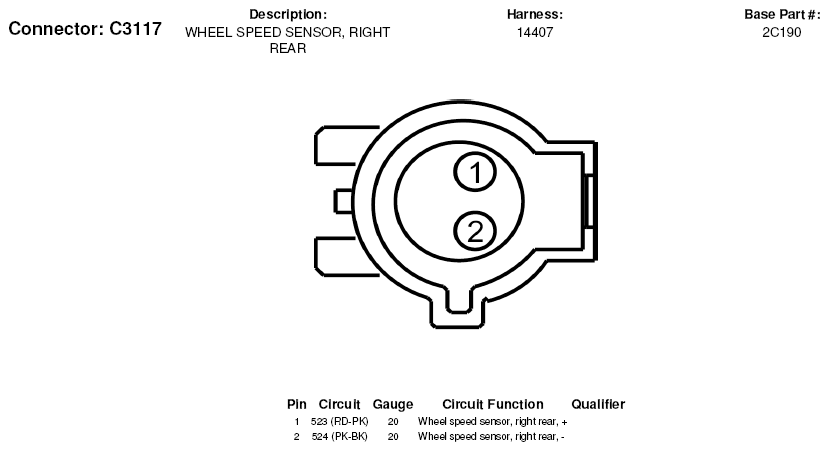

Fig 4: Wheel Speed Sensor Connector End View (C3117)
G05183369Courtesy of FORD MOTOR CO.
