Defrost Mode Actuator Connector

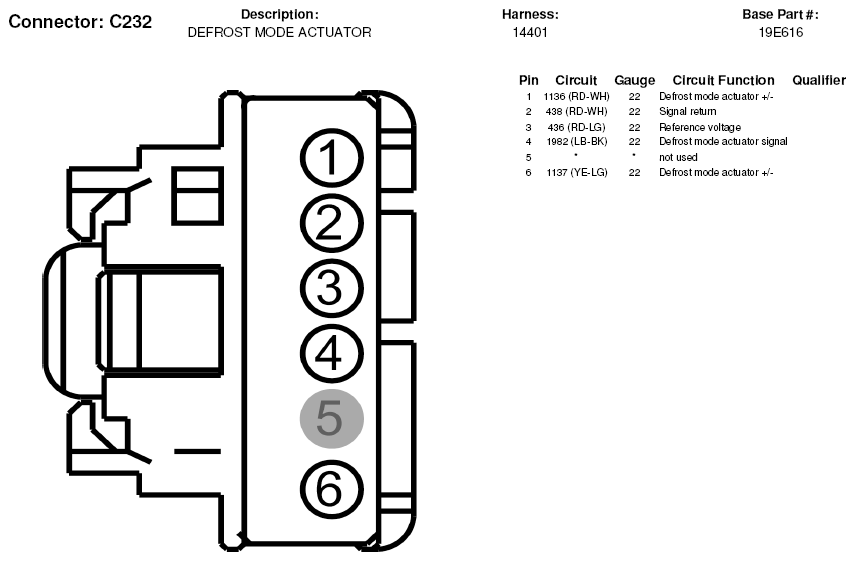

Fig 1: Defrost Mode Actuator Connector End View (C232)

G05183208

Courtesy of FORD MOTOR CO.
