Air Charge Temperature Sensor Connector

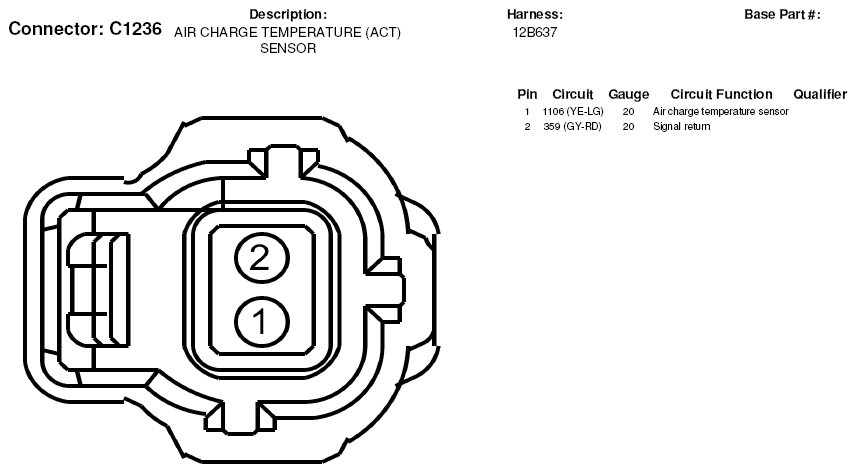

Fig 1: Air Charge Temperature Sensor Connector End View (C1236)

G05183320

Courtesy of FORD MOTOR CO.
