Power Steering Pump - 4.0L: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Set, Teflon® Seal | 211-D027 (D90P-3517-A) or equivalent |
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |

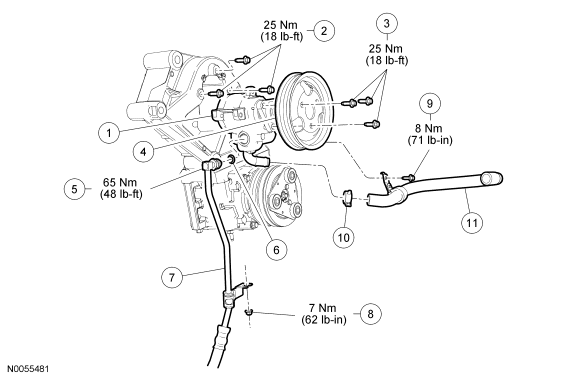

| Item | Part Number | Description |
|---|---|---|
| 1 | 3A674 | Power steering pump |
| 2 | W700839 | Power steering pump bolts (3 required) |
| 3 | N605784 | Power steering pump pulley bolts (3 required) |
| 4 | 3A733 | Power steering pump pulley |
| 5 | - | Pressure line-to-pump fitting (part of 3A719) |
| 6 | 388898 | Teflon® O-ring seal |
| 7 | 3A719 | Power steering pressure line |
| 8 | W503924 | Pressure line bracket-to-engine bolt |
| 9 | W503934 | Power steering fluid reservoir-to-pump hose bracket bolt |
| 10 | - | Power steering pump supply hose clamp |
| 11 | - | Power steering fluid reservoir-to-power steering pump supply hose (part of 3A697) |
