Power Steering Fluid Reservoir: Notes

Material

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

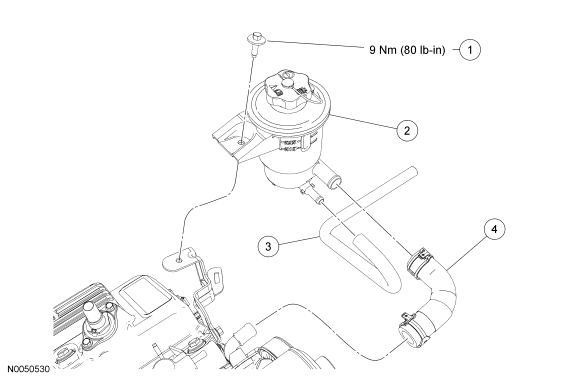

Fig 1: Exploded View Of Power Steering Fluid Reservoir With Torque Specification - 4.0L & 4.6L Engine

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503924	Power steering fluid reservoir bolt
2	3A697	Power steering fluid reservoir
3	3691	Power steering fluid reservoir-to-pump supply hose
4	3D746	Power steering fluid return hose

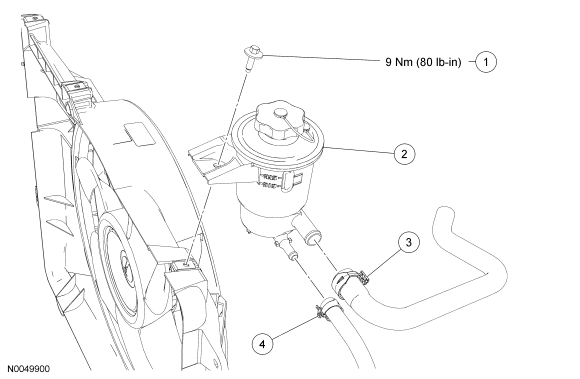

Fig 2: Exploded View Of Power Steering Fluid Reservoir With Torque Specification - 5.4L Engine

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503924	Power steering fluid reservoir bolt
2	3A697	Power steering fluid reservoir
3	-	Power steering fluid return hose (part of 3D746)
4	3E525	Power steering fluid reservoir-to-power steering pump supply hose
