Windshield Wiper Motor Connector

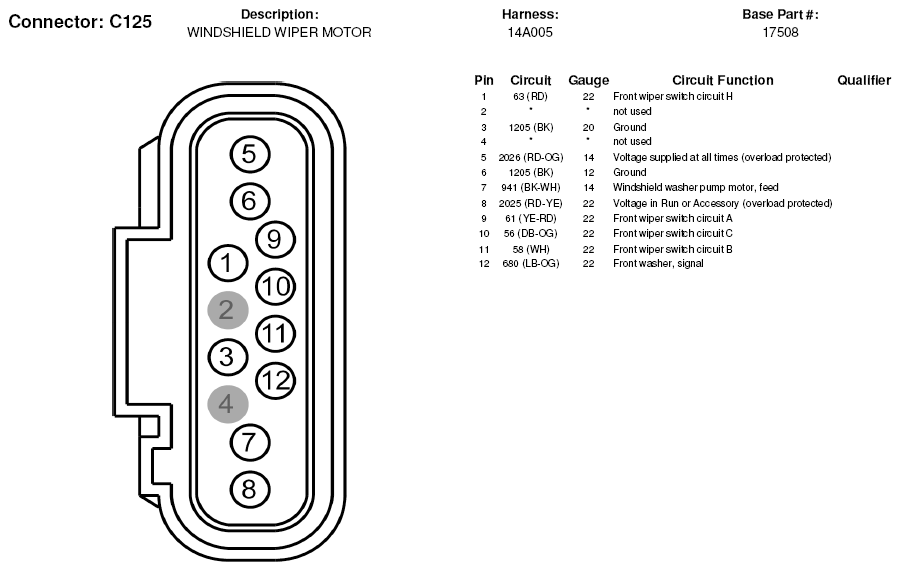

Fig 1: Windshield Wiper Motor Connector End View (C125)

G05183153

Courtesy of FORD MOTOR CO.
