Subwoofer Amplifier Connector

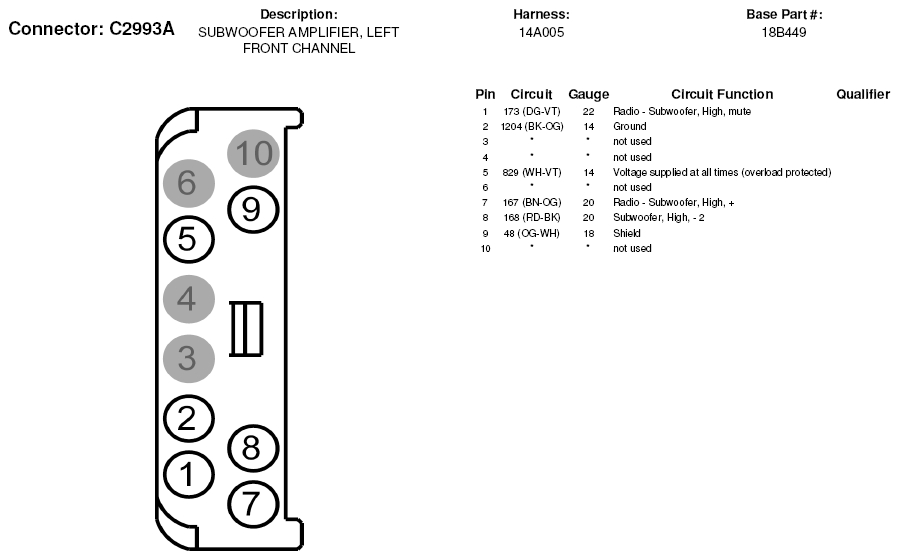

Fig 1: Subwoofer Amplifier Connector End View (C2993A)
G05183359Courtesy of FORD MOTOR CO.

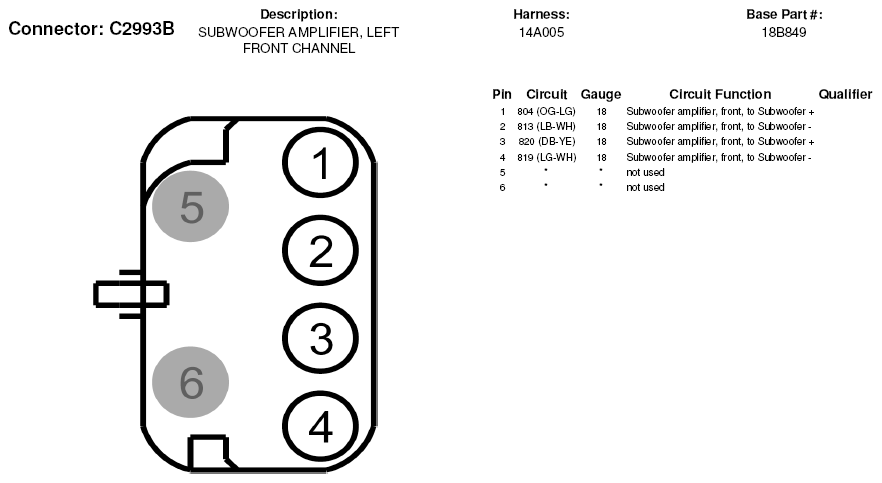

Fig 2: Subwoofer Amplifier Connector End View (C2993B)
G05183360Courtesy of FORD MOTOR CO.
Fig 3: Subwoofer Amplifier Connector End View (C2994A)
G05183361Courtesy of FORD MOTOR CO.

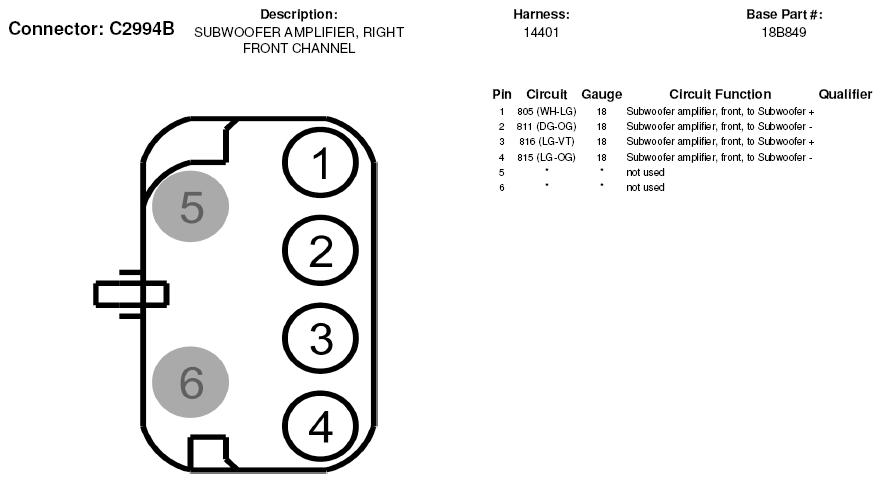

Fig 4: Subwoofer Amplifier Connector End View (C2994B)
G05183362Courtesy of FORD MOTOR CO.
