Power Window Motor Connectors

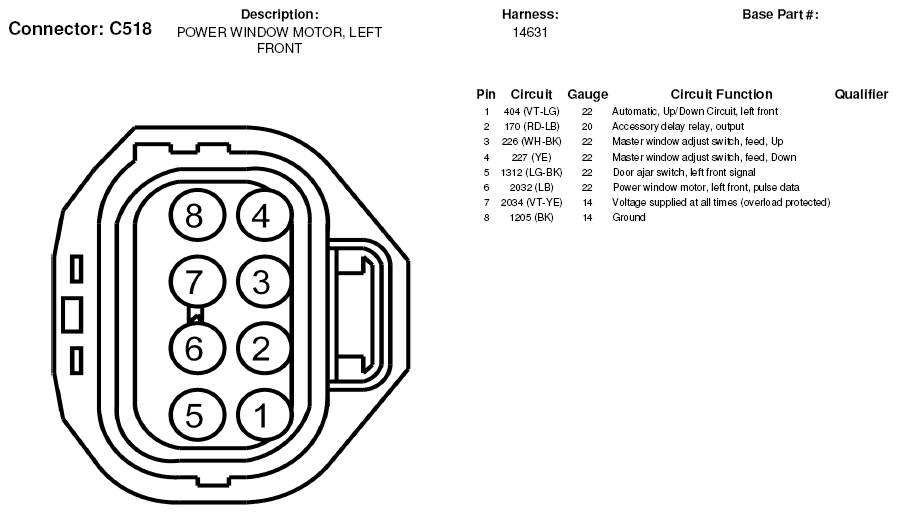

Fig 1: Power Window Motor Connector End View (C518)
G05183273Courtesy of FORD MOTOR CO.

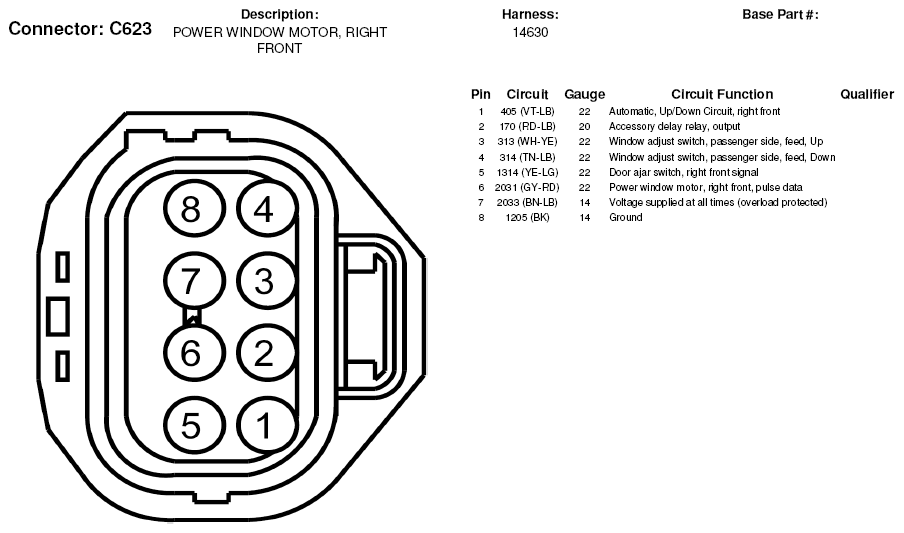

Fig 2: Power Window Motor Connector End View (C623)
G05183286Courtesy of FORD MOTOR CO.

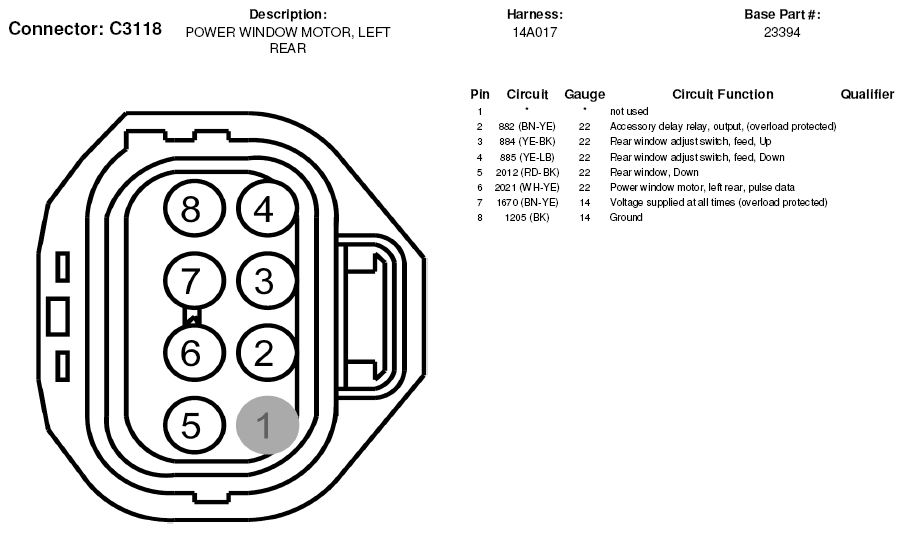

Fig 3: Power Window Motor Connector End View (C3118)
G05183370Courtesy of FORD MOTOR CO.
Fig 4: Power Window Motor Connector End View (C3119)
G05183371Courtesy of FORD MOTOR CO.
