Fuel Sender Connector

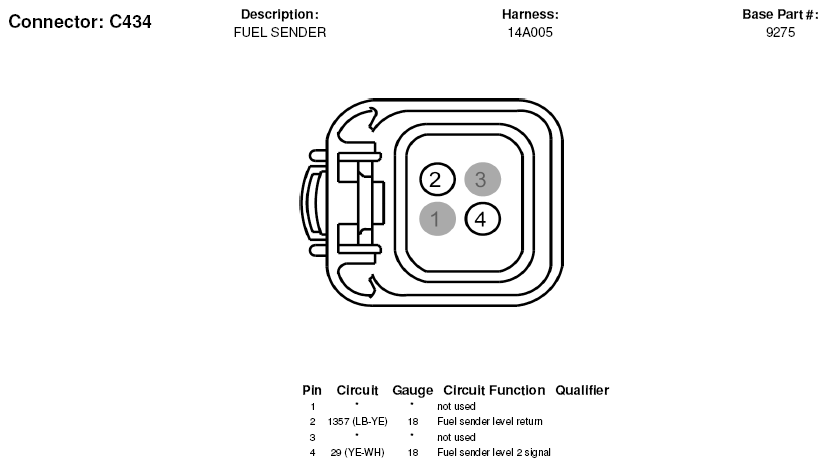

Fig 1: Fuel Sender Connector End View (C434)

G05183259

Courtesy of FORD MOTOR CO.
