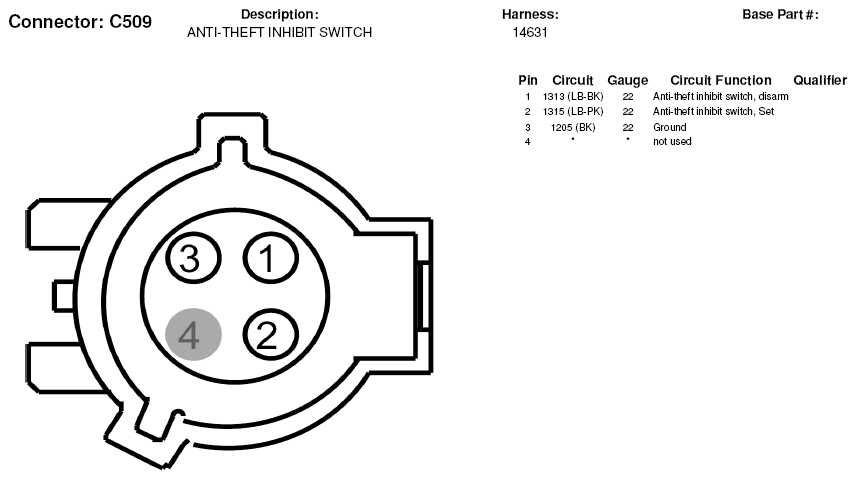

Home >> Ford >> 2007 >> Mustang Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector Views >> Anti-Theft Inhibit Switch Connector
