Fuel Rail and Fuel Injector - Exploded View

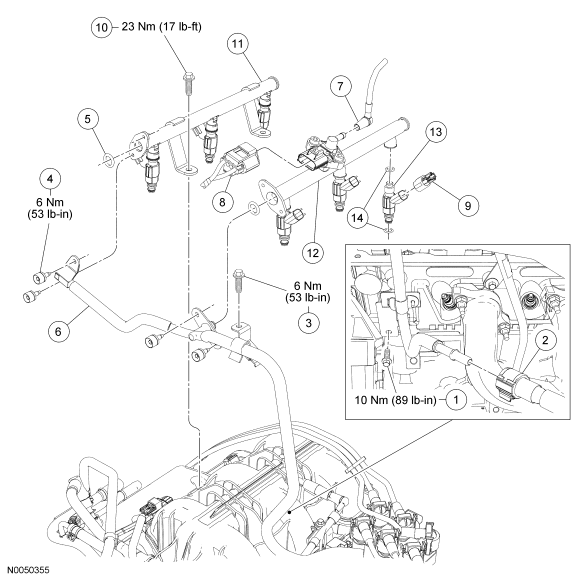

Fig 1: Exploded View Of Fuel Rail and Fuel Injector With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500213	Lower fuel rail supply tube bracket bolt
2	834551	Fuel rail supply tube quick connect coupling
3	W500204	Upper fuel rail supply tube bracket bolt
4	W711782	Fuel rail supply tube bolt (4 required)
5	-	O-ring seal (2 required)
6	9E964	Fuel rail supply tube
7	9E498	Fuel rail pressure and temperature sensor vacuum hose
8	14A464	Fuel rail pressure and temperature sensor electrical connector
9	14A464	Fuel injector electrical connector (6 required)
10	W500023	Fuel rail bolt (4 required)
11	9D280	RH fuel rail
12	9D280	LH fuel rail
13	9F593	Fuel injector (6 required)
14	-	O-ring seals (12 required)

1. For additional information, refer to appropriate procedures.
