Safety Belt Retractor - Rear, Center: Notes

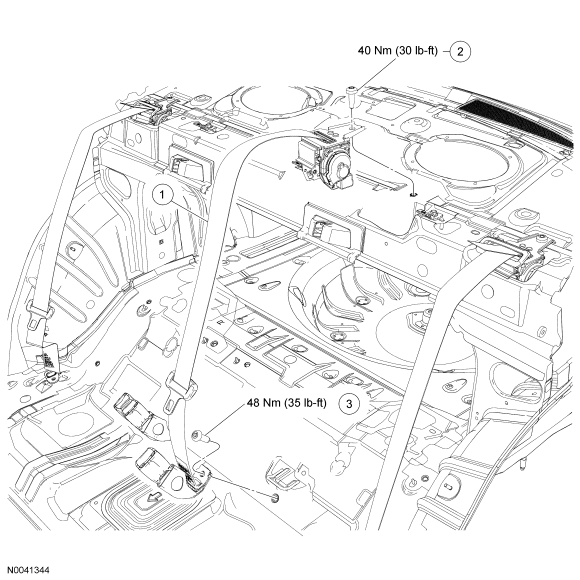

Fig 1: Exploded View Of Rear Center Safety Belt Retractor With Torque Specifications
GF0028557Courtesy of FORD MOTOR CO.
Item Part Number Description
1 611B66 Rear center safety belt retractor
2 W700883 Bolt, safety belt retractor
3 - Bolt (part of 611B66)
