Safety Belt Buckle - Rear: Notes

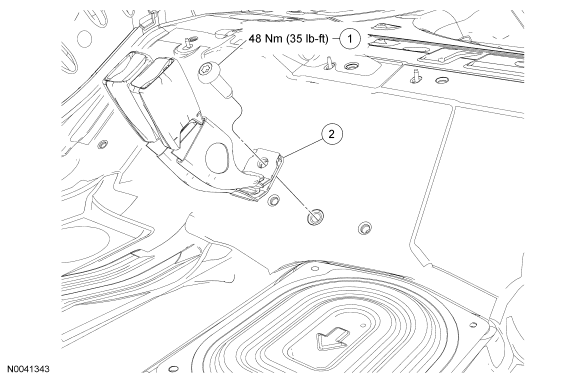

Fig 1: Exploded View Of Rear Safety Belt Buckle With Torque Specification
GF0028561Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Bolt (part of 60044)
2 60044 RH and center safety belt buckle assembly
