Door Lock Switch Connector

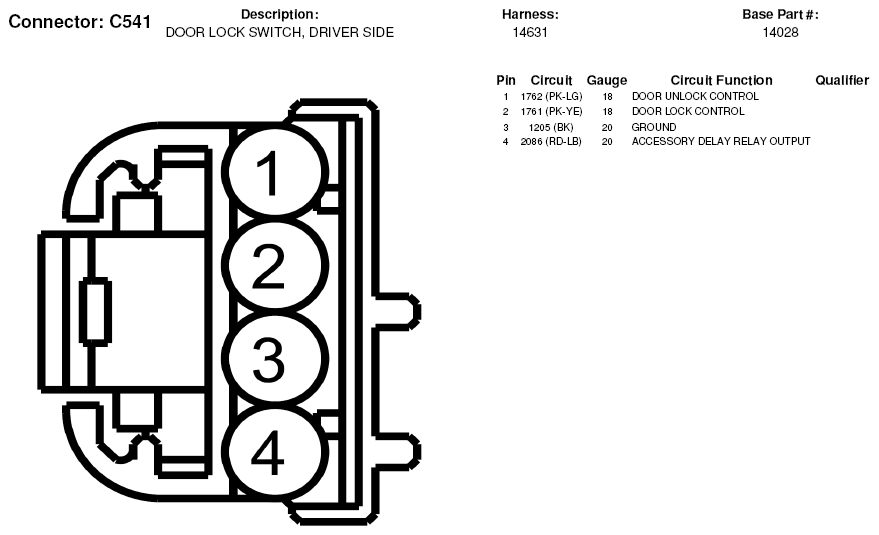

Fig 1: Door Lock Switch Connector End View (C541)

G05179520

Courtesy of FORD MOTOR CO.

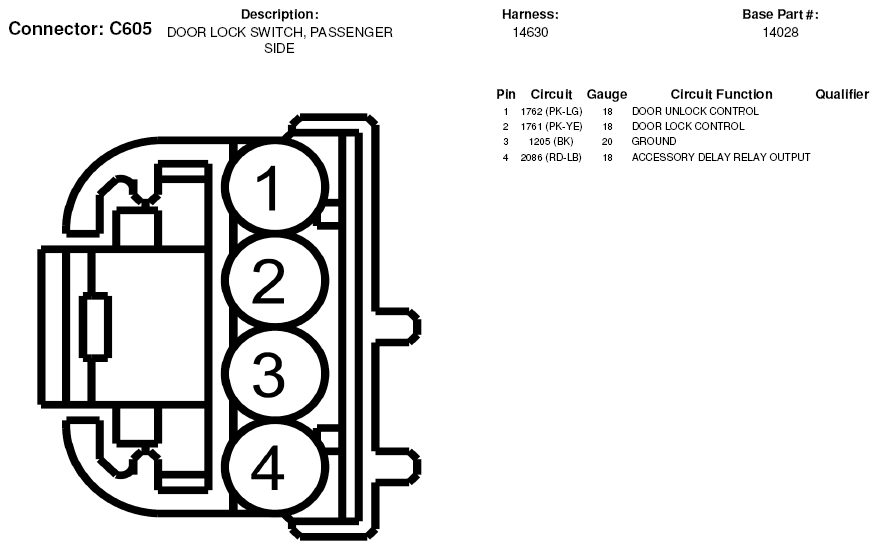

Fig 2: Door Lock Switch Connector End View (C605)

G05179524

Courtesy of FORD MOTOR CO.
