Suction Accumulator: Notes

Material

Item Specification
PAG Refrigerant Compressor Oil (R134a Systems)
YN-12-D		 WSH-M1C231-B

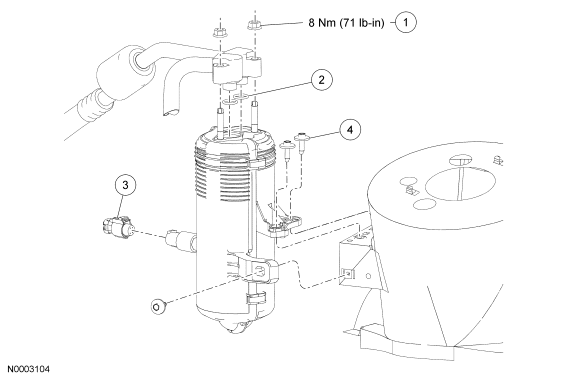

Fig 1: Exploded View Of Suction Accumulator With Torque Specifications
GF0033732Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520413 A/C fitting nut (2 required)
2 19E889 O-ring seal (2 required)
3 14290 A/C cycling switch electrical connector
4 N807658 Suction accumulator bolt (3 required)
