Air Conditioning (A/C) Compressor: Notes

Material

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

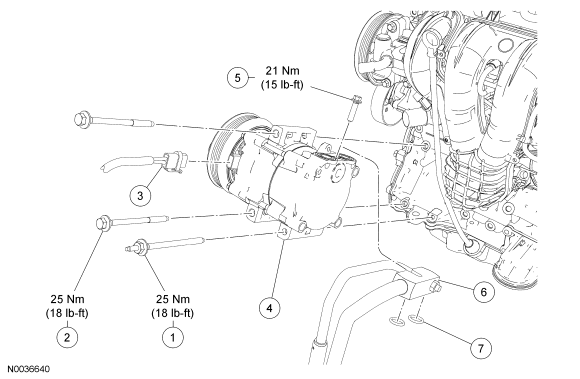

Fig 1: Air Conditioning Compressor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709052-S301	Stud
2	W707340-S301	Bolt (2 required)
3	-	Electrical connector
4	19703	A/C compressor
5	N805334-S58	Bolt
6	19D734	Manifold and tube assembly
7	19E889	O-ring (2 required)
