Window Adjust Switch Connectors

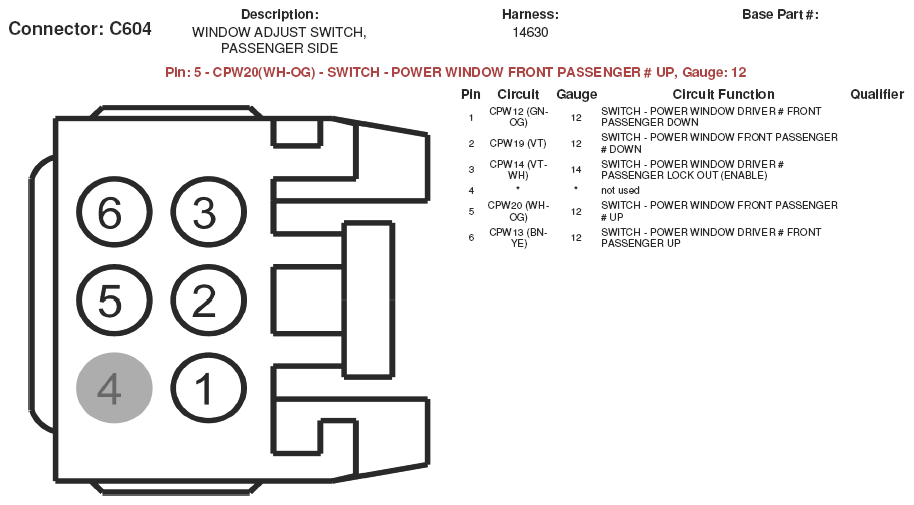

Fig 1: Window Adjust Switch Connector End View (C604)
G05166827Courtesy of FORD MOTOR CO.

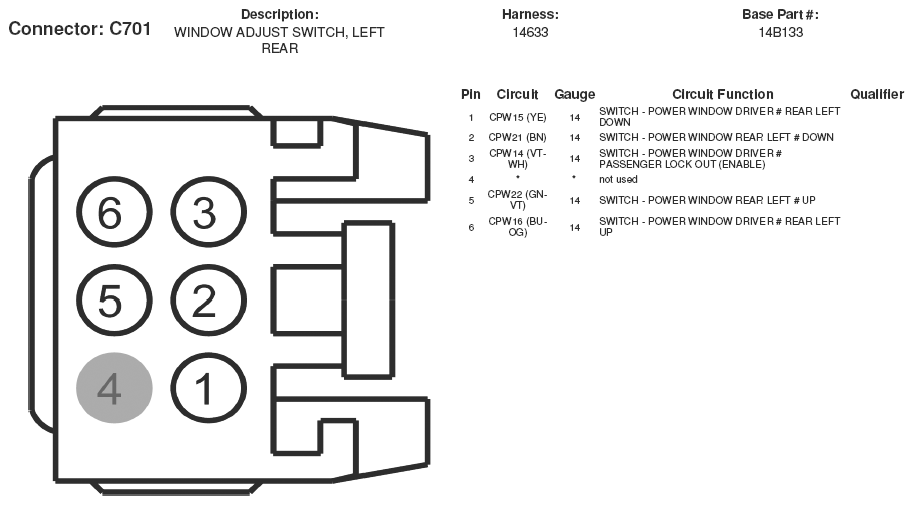

Fig 2: Window Adjust Switch Connector End View (C701)
G05166835Courtesy of FORD MOTOR CO.

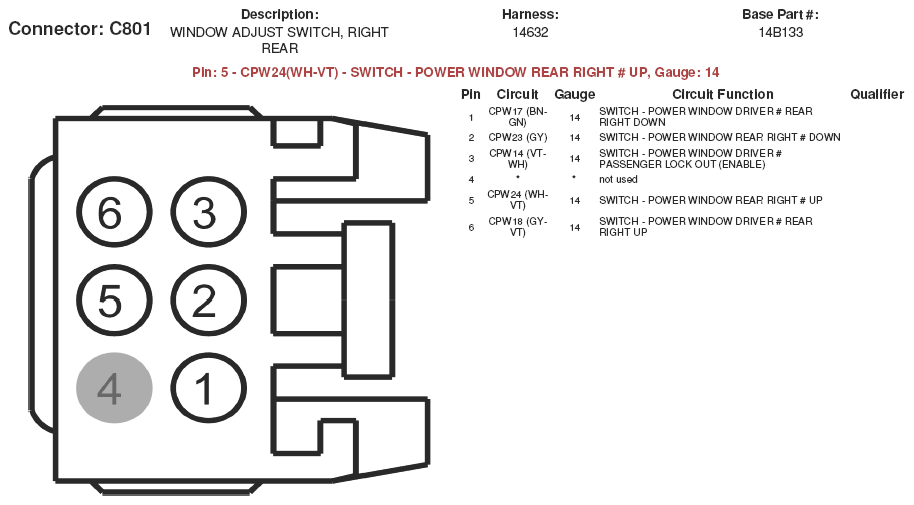

Fig 3: Window Adjust Switch Connector End View (C801)
G05166841Courtesy of FORD MOTOR CO.
