Power Seat Switch Connector

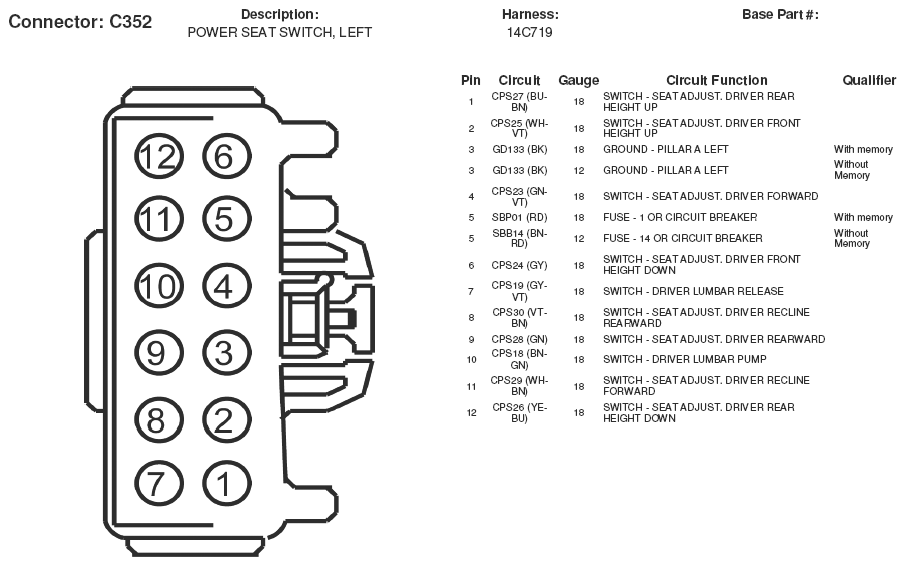

Fig 1: Power Seat Switch Connector End View (C352)
G05166759Courtesy of FORD MOTOR CO.

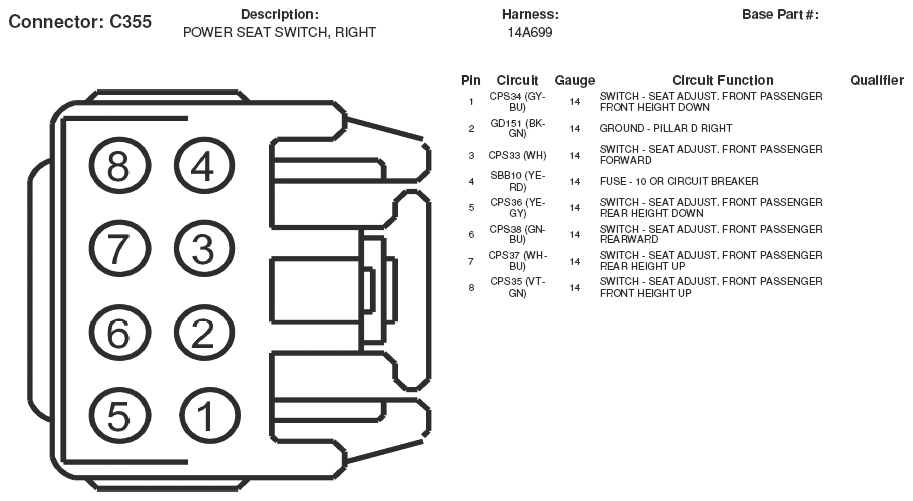

Fig 2: Power Seat Switch Connector End View (C355)
G05166761Courtesy of FORD MOTOR CO.

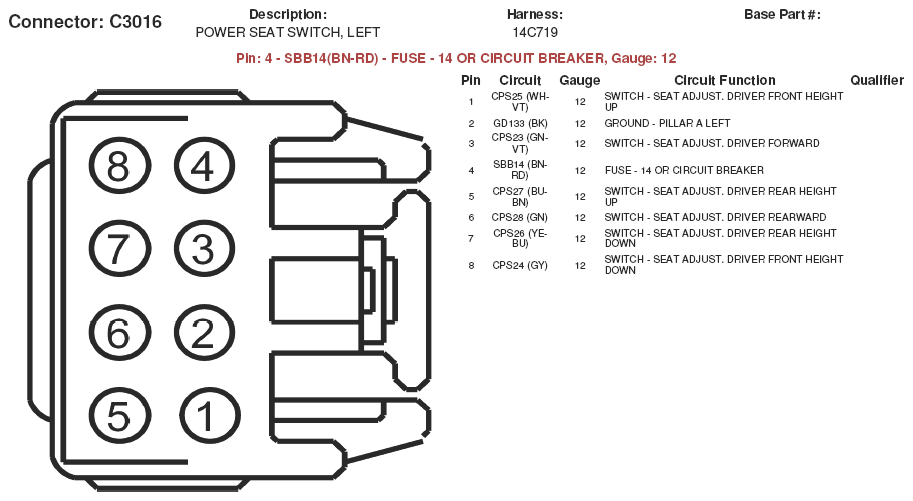

Fig 3: Power Seat Switch Connector End View (C3016)
G05166930Courtesy of FORD MOTOR CO.
